16 Level Damping Force Adjustment (Comp./Rebound Together)
GR3 is equipped with 16-level simultaneous compression/rebound damping force adjustment feature. A wide variety of setups are available to suit different driving scenes.
Upper Mount
Upper mounts, exclusively designed for each vehicle model, are included.
Upright Strong Tube Structure
Aeration-free mono-tube-based highly-rigid structure, evolved out of professional motorsports worldwide, including WRC & WRX.
Oil Lubrication
For strong tube structure, oil is used as lubricant, instead of grease used for other existing damper types, to reduce friction, suppress temperature rise of shock absorber oil and improve stability even under tough driving conditions.

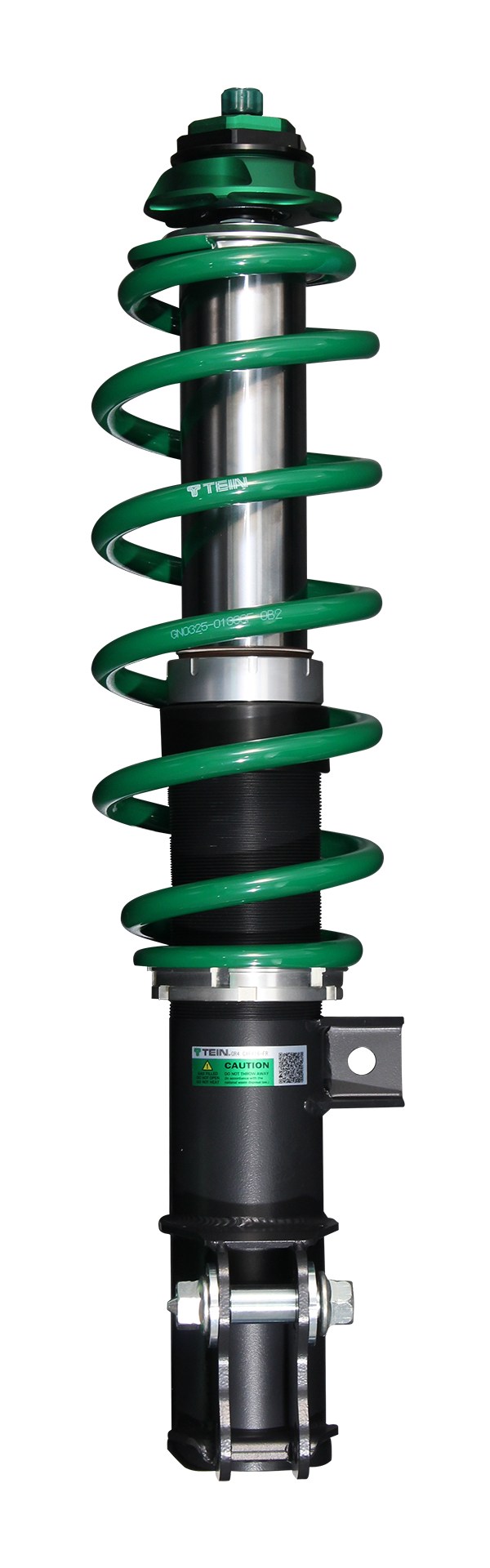

Mono Tube Structure
Mono tube shell case is used to achieve and maintain fine control and close communication with road surfaces. It allows for linear generation of damping force, to correspond to even a smallest change in road conditions, stably at high levels, withstanding repeated harsh runs.
Spring Included
Kit includes main springs, of which the rate can be chosen from the recommended ones at the time of order.

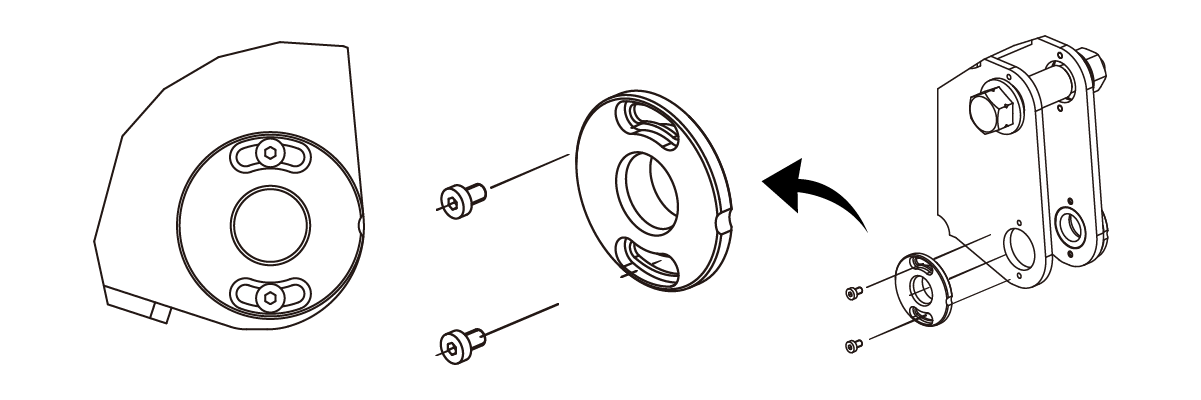

Camber Adjustment Mechanism (Strut)
GR3 is equipped with replaceable plates at the knuckle part to provide camber angle adjustment. Camber angle can be adjusted by changing camber washer with another set with different offsets.
Available for Overhaul and Revalving
GR3 is available for overhaul and revalving.
Click for More Details

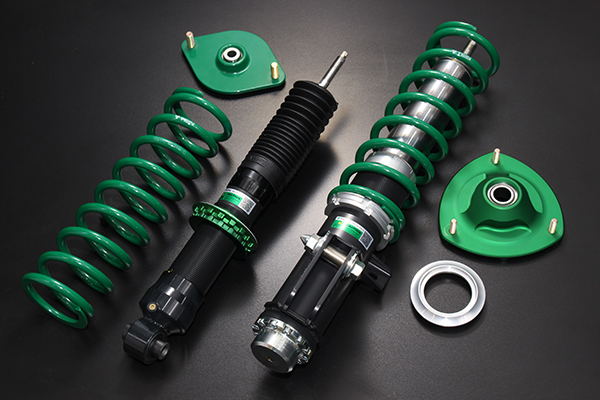

TOYOTA 86 & GR86 / SUBARU BRZ
Contact TEIN or TEIN distributors for production lead time. Estimated LT is approx. 1 month. Not filled with lubricating oil at the time of shipment. Must apply appropriate amount of oil in prior to use. Cover top nut tool (part No. SST03-P4282 / sold separately) is required for oil filling. Specified Oil: Gear Oil 75W-90
Chassis Code
Type
Part No.
Note
ZN6
Gravel
VSQ54-R1LR1
Included in kit;
pillow ball upper mounts
3 different pairs of front camber washers
main springs
ZN8
Gravel
VSQ54-R1LR1
Included in kit;
pillow ball upper mounts
3 different pairs of front camber washers
main springs
ZC6
Gravel
VSQ54-R1LR1
Included in kit;
pillow ball upper mounts
3 different pairs of front camber washers
main springs
ZN6
Tarmac
VSQ54-51LT1
Included in kit;
pillow ball upper mounts
3 different pairs of front camber washers
front & rear helper springs and matching spacer spring seats
main springs
ZN8
Tarmac
VSQ54-51LT1
Included in kit;
pillow ball upper mounts
3 different pairs of front camber washers
front & rear helper springs and matching spacer spring seats
main springs
ZC6
Tarmac
VSQ54-51LT1
Included in kit;
pillow ball upper mounts
3 different pairs of front camber washers
front & rear helper springs and matching spacer spring seats
main springs
Sold as a set of 2 springs. *: Helper spring (included in damper kit)
Type
Front / Rear
Part No.
Rate (N/mm)
I.D. (mm)
Free Length (mm)
Gravel
Front
GN025-01310F
25
75-89-75
310
GN0275-01300F
27.5
75-89-75
300
GN030-01290F
30
75-89-75
290
Rear
GN025-01345B
25
70
345
GN0275-01345B
27.5
70
345
GN030-01335B
30
70
335
Tarmac
Front
GN070-01175A
70
75
175
GN080-01170A
80
75
170
GN090-01165A
90
75
165
NH005-01100*
4.9
115
100
Rear
SY080-01225
78
70
225
SY090-01225
88
70
225
SY100-01225
98
70
225
CS004-01095*
3.92
70
95
SUZUKI SWIFT SPORT
Contact TEIN or TEIN distributors for production lead time. Not filled with lubricating oil at the time of shipment. Must apply appropriate amount of oil in prior to use. Cover top nut tool (part No. SST03-P4282 / sold separately) is required for oil filling. Specified Oil: Gear Oil 75W-90
Chassis Code
Type
Part No.
Note
ZC33S
Gravel
VSUB8-R1NR1
Included in kit;
pillow ball upper mounts
3 different pairs of front camber washers
rear height adjust system (H.A.S.)
main springs
ZC32S
Gravel
-
Under Development
ZC33S
Tarmac
VSUB8-51NT1
Included in kit;
pillow ball upper mounts
3 different pairs of front camber washers
front helper springs and matching spacer spring seats
rear height adjust system (H.A.S.)
main springs
Sold as a set of 2 springs. ◆: Ask TEIN for availability/LT. *: Helper spring (included in damper kit)
Type
Front / Rear
Part No.
Rate (N/mm)
I.D. (mm)
Free Length (mm)
Gravel
Front
GN025-01295F
25
75-89-75
295
GN0275-01290F
27.5
75-89-75
290
GN030-01290F
30
75-89-75
290
Rear
S4UB9-010225
22.5
Exclusively Designed
208
S4UB9-010250
25
Exclusively Designed
205.5
S4UB9-010275
27.5
Exclusively Designed
200
Tarmac
Front
GN060-01170A◆
60
75
170
GN070-01165A◆
70
75
165
GN080-01160A◆
80
75
160
NH013-01070*
13
80
70
Rear
S4UB9-010500◆
78
Exclusively Designed
-
S4UB9-010550◆
88
Exclusively Designed
-
TOYOTA GR YARIS
Contact TEIN or TEIN distributors for production lead time. Not filled with lubricating oil at the time of shipment. Must apply appropriate amount of oil in prior to use. Cover top nut tool (part No. SST03-P4282 / sold separately) is required for oil filling. Specified Oil: Gear Oil 75W-90
Chassis Code
Type
Part No.
Note
GXPA16
(-2024.03)
Gravel
VSTN0-R1LR1
Included in kit;
front pillow ball upper mounts and special tool
rear upper mounts
3 different pairs of front camber washers
rear height adjust system (H.A.S.)
main springs
GXPA16
(2024.04-)
Gravel
VSBLV-R1LR1
Included in kit;
pillow ball upper mounts
rear upper mounts
3 different pairs of front camber washers
rear height adjust system (H.A.S.)
main springs
GXPA16
(-2024.03)
Tarmac
VSTN0-51LT1
Included in kit;
front pillow ball upper mounts and special tool
rear upper mounts
3 different pairs of front camber washers
front & rear helper springs and matching spacer spring seats
rear height adjust system (H.A.S.) and spring seat adapter
main springs
GXPA16
(2024.04-)
Tarmac
VSBLV-51LT1
Included in kit;
front pillow ball upper mounts
rear upper mounts
3 different pairs of front camber washers
front & rear helper springs and matching spacer spring seats
rear height adjust system (H.A.S.) and spring seat adapter
main springs
Sold as a set of 2 springs. ◆: Ask TEIN for availability/LT. *: Helper spring (included in damper kit)
